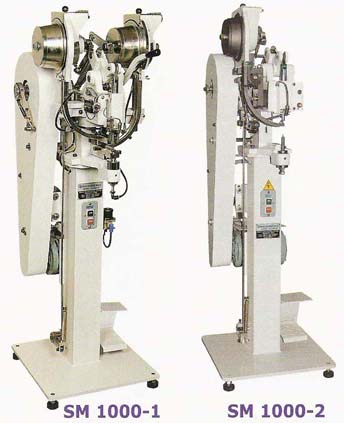

SM 1000-1 / 2  Full Automatic Eyelet Punching and Attaching Machine



Features

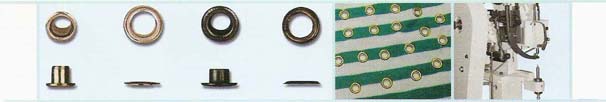

• Process punching fabric and striking eyelets (Capsule and Washer) at one time.
• After punching made, the remains of fabric is processed automatically. (Patented)
• Various kinds of fabric from jeans to thin cloth are eyeletted beautifully.
• Available size : One of eyelet sizes #1, #2, #3 to be selected by customer. Also other special size is made to order.
• Dimension : 400mm x 400mm x 1,300mm
• Weight : 85Kg
• Motor specification : 1Ph, 220V, 50Hz/60Hz, 0.25Kw, 1/3Hp
• Power supply : AC 220V, AC 110V or 3 Phase is available by request

Application

• Cap, Shopping Bag, Clothes, etc.
